MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System

Name: MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO MTP-OM4
Price: 1.04 USD
Availability: InStock

브랜드 이름:	YINGDA
모델 번호:	MPO MTP-OM4
MOQ:	10PCS
가격:	0.04USD-2.15USD

자세한 정보

제품 설명

자세한 정보

Place of Origin:

china

인증:

ISO,SGS

color:

Black, green, aqua, purple ,etc

material:

plastic PC ABS

connector:

MPO MTP adaptor

fiber count:

12 fiber, 24 fibers

product name:

mpo to mpo cable,mpo to lc cable, mtp optical connector,mtp cassette

Packaging Details:

1pc / box

제품 설명

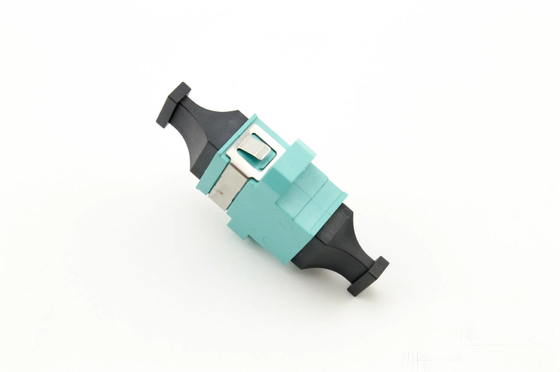

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 0

‌MPO Adapter‌ is a high-performance optical fiber connector, mainly used for connecting multi-core optical fibers. It can connect multiple optical fibers at the same time, significantly improving the wiring density and transmission efficiency of optical fiber networks.

MPO adapters are commonly used in high-density optical fiber cabling systems, such as data centers, supercomputing centers, communication system base station,building room fiber distribution (ODF),MPO box, and large enterprise networks.

12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell direct, standard delivery time: 2days -3days. Color can be customized according to customer requirements.

Features

Good repeat ability, repeat >500times
Low insertion loss
High reliability
Variety of kinds
Meet RoSH requirements

Strong compatibility

   MPO coupler for multi mode OM3 100G fiber optic cables, 12/24 cores MPO fiber optic cables,with protective dust plug,-40~75℃ operating temperature.

Easy installation
 The mpo to mpo fiber optic patch cord coupler key up and key down connections for easy installation.
High repeatability
The mpo to mpo adapter can be plugged and unplugged 500 times, loss change ≤ 0.20dB.

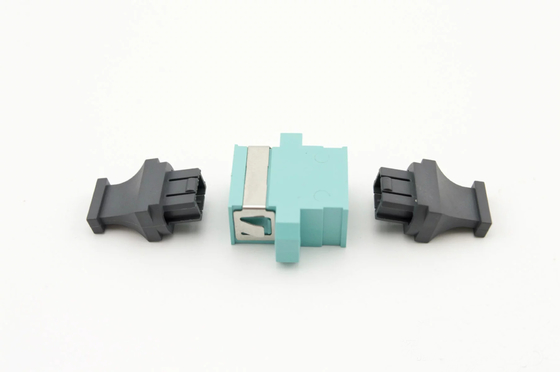

Adapter Structure

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 1

Specification

Connector	MPO / MTP
Color	Black / aqua
Test wavelength	1310nm, 1550nm, 850nm, 1300nm
Insertion loss	typical<0.20dB, maximum< 0.30dB
Repeat ability	≤0.10dB
Interchangeable	≤0.20dB
Plug performance	Plug 500 times, <0.20dB
Adapter material	Plastic PC
Working temperature	0℃ to +70℃
Storage temperature	-40℃ to +85℃

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 2
---------------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------
Application

Test instruments
The fiber link test
The connection between the equipment
The connection between the MPO - jumper
The cable TV network, metropolitan area network,
wide area network, FTTX

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 4
