| 브랜드 이름: | YINGDA |
| 모델 번호: | FDB0316P |
| MOQ: | 10pcs |
| 가격: | 1.0USD-18.6USD |
| 배달 시간: | 7-10 일 |
| 지불 조건: | T/T, Western Union, Moneygram, L/C. |

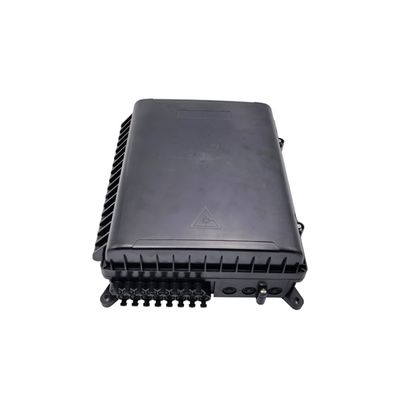

Outdoor Optical Splitter Box 3in 16out With LGX Module For 2x3mm Flat Drop Cable Outlets PC ABS Material
The box is used as a fiber access termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be accomplished in this box, in the meanwhile it provides solid protection and management for the FTTx network building.
Optical Fiber Distribution Box Specification
| Max capacity | Size (Pic 1) | Max Capacity | Installation Size (Pic 2) | Into the largest cable diameter (mm) | Cable outlet (mm) | |
| A*B*C(mm) | Splicing | LGX Splitter | D*E /F*G(mm) | |||
| 16 cores | 327*258*94 | 16 | 1:8 *2pcs | 150.5*130/312*236 | 12mm | 2*3~7 |
Fiber Splitter box Feature:
Total enclosed structure.
Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Feeder Cable,distribution cable, pigtails are running through individual paths without disturbing each other,LGX splitter installation,easy for maintenance.
Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Fiber Cable Box 16Cores Product Details

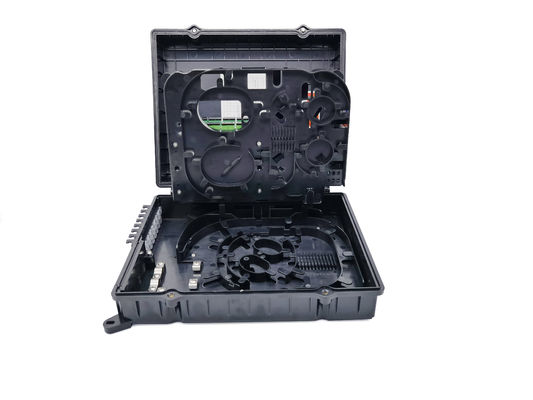

Fiber optic box is made of ABS PC material, brand new materail, not second. And the internal have adapter feeder and splice tray design, below is for type 1 adapater plate with splice trays, which is the most popular.
Maximum 2pcs white optical fiber fusion trays with lid, each tray capacity: 12 core single layer
The tray is clip fix on the back brackets, you can take it off for fast and easy operation on site

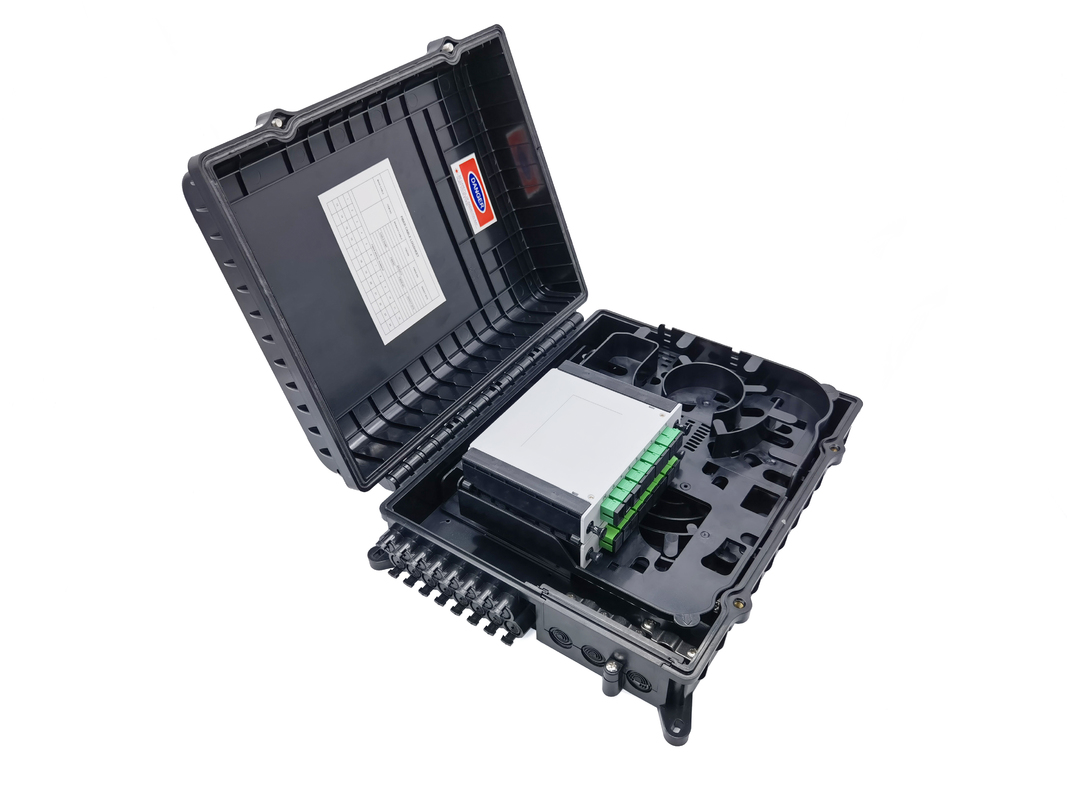

The bottom bracket have slots for steel tube and splitter input side connectors, which ensure stability during long time transportation, not fiber broken or mess. The adapter plate is plastic, and can hold max. 16pcs SC adapters or LC duplex adapters.
There are holes and projections on the adapter panel to fix the adapter, which can be fixed without screws. Only the protrusion should be aligned with the screw hole on the adapter and the metal spring piece of the adapter itself can be fixed.
The plate also can insert into the reserved hole to make it at place,no need screws to fix.

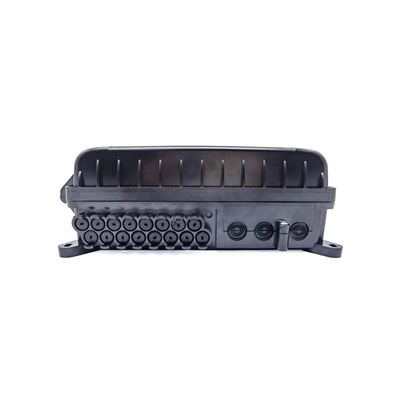

There is cable clamps to fix on the cable on the stainless brackets,total 3pcs cable entry: 1uncut port (mid span) and 2 cable glands, 16pcs drop cable exit.
Cable Distribution Box Application
Fiber Optic Splitter Box 16cores Standard accessory
Splice tray 2pcs, 4pcs wall mount expansion screws, 16pcs fiber protective sleeve, 4pcs cable clamp,nylon ties, adapter plate for 16 x adapters, cable protection tube, key, PG 13.5 cable glands for distribution ports, Pole mounted kits (optional).
