| 브랜드 이름: | yingda |
| 모델 번호: | GPSR-1U-SA144 |
| MOQ: | 10PCS |
| 가격: | 협상 가능 |
| 배달 시간: | 15-18 days |
| 지불 조건: | T/T,Western Union,paypal,L/C |

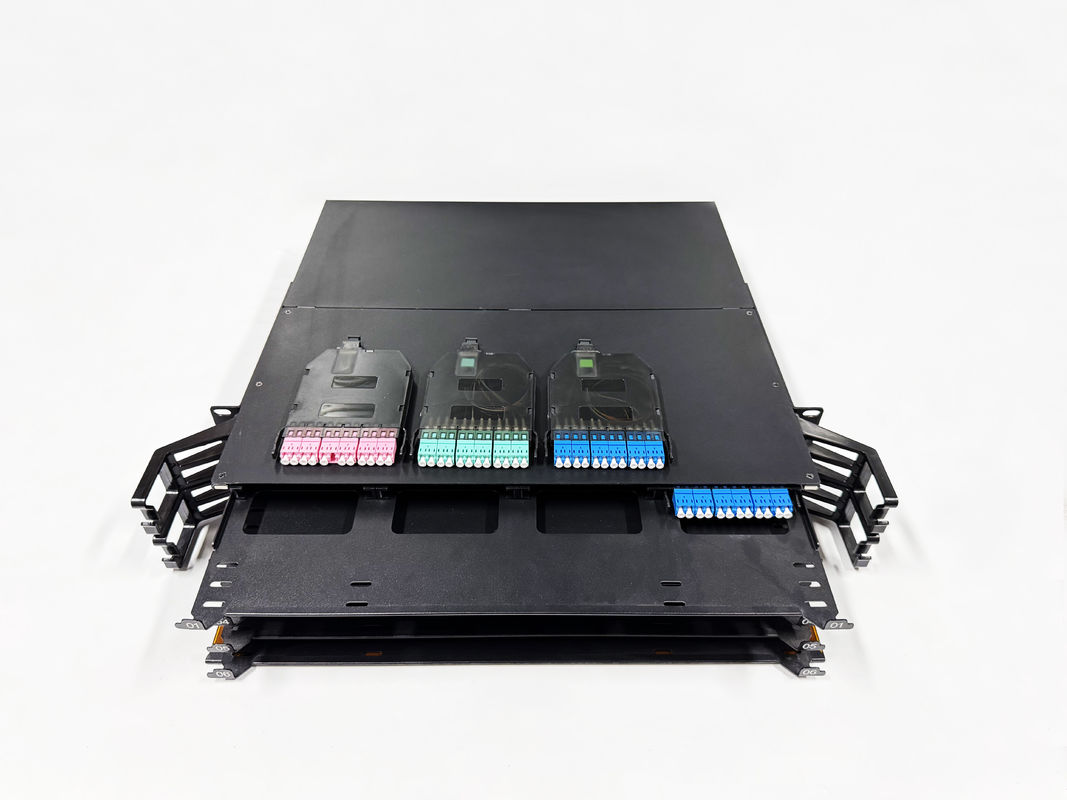

High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution
The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1 X N MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.
MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Fiber Adapter Panel 144cores Specification
| Part no. | FHD1R144-C04FD | FHD3R288-C04FD | FHD4R576-C04FD |
| Fiber count | 144 cores | 288 cores | 576 cores |
| Dimension | 482.6*455*44.5mm | 482.6*455*89mm | 482.6*455*177mm |
| Cassette quantity | 12 pcs | 24 pcs | 48 pcs |
| Material | CRS Cold rolled steel | ||
| Compliance | TIA/EIA-568-C.3 | ||
| Installation | Standard EIA 19″ Rack | ||
| Enclosure type | Rack Mount sliding out patch panel | ||
Application:
Data centers, pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High density architectures
Optical Distribution Panel 4U Pack information
| Quantity/carton box | Carton size | Weight/carton box |
| 1pc | 47*35*28cm | 10kg |
Yingda Offer all kinds of MPO series box, welcome inquiry.
24 Fiber MPO Cassette MPO Harness Cable MPO Truck Cable
