| 브랜드 이름: | YINGDA |
| 모델 번호: | MPO-LC 8cores Elite |
| MOQ: | 100 |
| 가격: | 0.2USD-100USD |
| 배달 시간: | 5-8 working days |
| 지불 조건: | T/T,AliPay,PayPal |

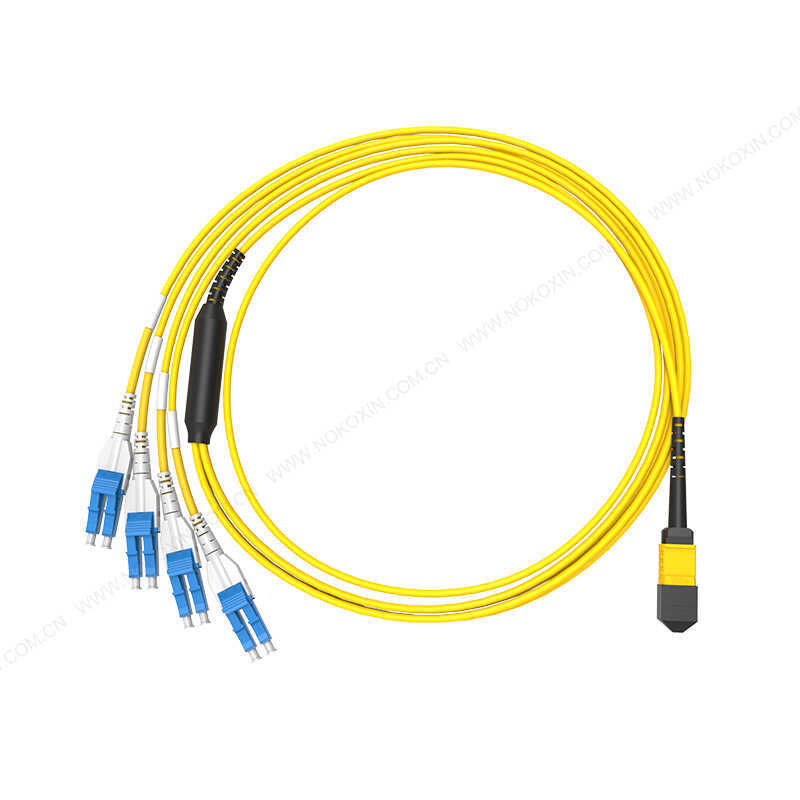

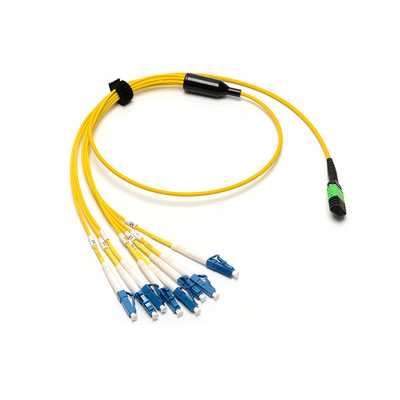

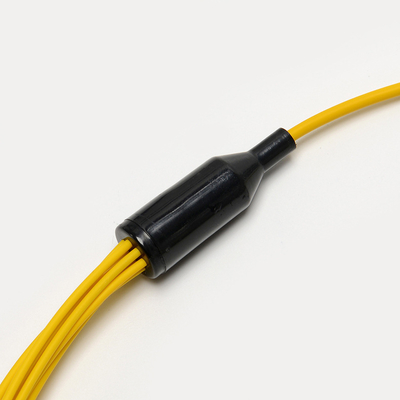

MPO Cable Description
MPO/MTP ribbon and trunk mulit-core cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.
MTP/MPO is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged micro cables structure. The compact cable optimize cable way use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.
Feature
【High Speed and High Density】This mpo fiber optic cable features premium quality multimode fiber,mpo om5 cables provides a secure and reliable connection,low insertion loss(IL≤0.35dB) and high return loss(RL≥60dB),support 10G/40G/100gigabit
【 MPO Breakout Cable Application】Residential area,industrial park room,commercial building optical signal connection,large data centers,building dense cabling system,fiber optic communication system,cable television network,telecommunication network LAN,GPON/EPON applications,wide area network,fttx
【Safety LSZH Jacket Multimode Fiber 】Our fiber patch cable featuring an lszh low smoke zero halogen jacket material(coefficient of frictionμ<0.2),offers fire resistance and minimal smoke and toxic fume production in case of a fire,and reliably operates within a temperature range of -20ºc to +70ºc
【Fast Delivery】Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. Lead time around 2-3 working days.
MPO Connectors Optical Parameters
|
Insertion loss(dB)
|
SM Standard
|
SM Elite
|
MM Standard
|
MM Elite
|
|
|
≤0.7
|
≤0.35
|
≤0.7
|
≤0.35
|
||
|
Return loss(dB)
|
≥60
|
≥20
|
|||
|
Durability (dB)
|
≤0.2, 500 times mating
|
||||
|
Tensile strength(kgf)
|
10
|
||||
|
Working temperature(℃)
|
-20 ~+70
|
||||
|
Measurement wavelength(nm)
|
1310
|
850
|
|||
|
Standards
|
IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
|
||||
|
Housing color
|
Green connectors+black boot
|
Yellow connector+black boot
|
OM1&OM2: beige connector+black boot
OM3&OM4:aqua connector+black boot
OM3&OM4: violet connector+black boot
|
||
Geometry parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of curvature(mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error (nm) | 600 | |||
| Adjacent fiber height error (nm) | -300 | +300 | ||
| Avg. fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||

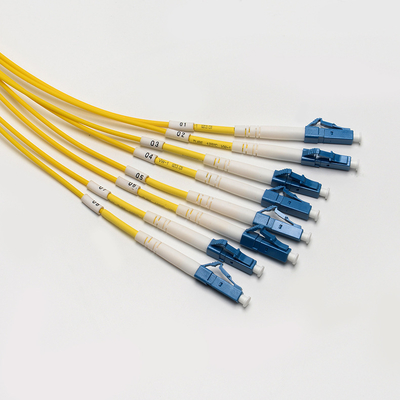

LC/SC/FC Fiber Connectors
| Fiber mode | Single Mode | Multimode | |
| Connector polishing | PC | APC | PC |
| Insertion loss (dB) | ≤0.3 | ||
| Return loss (dB) | ≥50 | ≥60 | ≥35 |
| Repeatability(dB) | ≤0.2, 1000 times mating | ||
| Working temperature(℃) | -40 ~+85 | ||
| Measurement wavelength (nm) | 1310 | 850 | |
MPO Structure diagram
More MPO patch cord types for optional
YINGDA'S MPO Patch Cord Workshop
YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
